| $4,000,000 | | |
| Status: | Available |
| Location: |
USEC Senegal [View Map] |
| Reference: | DO0172 |
| Website: | Open website in new window |
Description
DO0172 OFFSHORE Supply and Support Vessel For Sale & Charter
- FROM DIRECT OWNERS -
Price includes overhaul of main engines
Refurbished: 2006
Bunker/Towing/Storage capacity:
MDO : 850 m3, Lub Oil : 11 m3, Fuel Transfer : 4 inches TODO, Bollard
Pull : 34,5 Ton

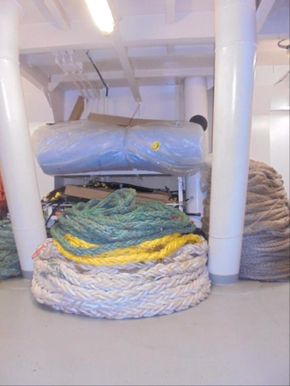

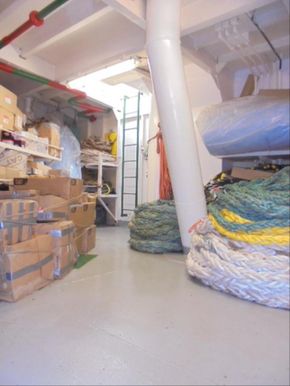

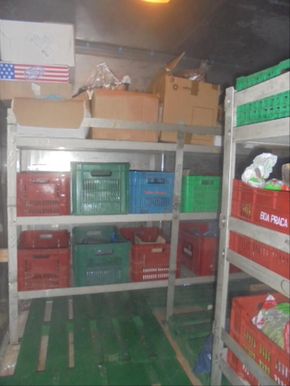

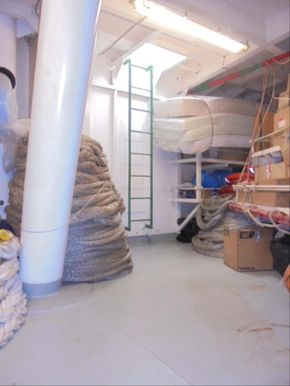

Freezer : 30,18 m3 below deck, 3x 20ft Reefer container on deck, Dry
Storage : 56,45 m3 below deck
Speed/Fuel Consumption: Max Speed 11,0 knots : 10 m3/24 hrs Eco
Speed 9,0 knots : 6 m3/24 hrs
Water maker(s): FW Maker : Aquamar AQE 6D Reverse Osmosis plant,
Capacity : 4.8 m3/per day
Special features: Fuel Hose Reel : 1x 4 inches 240 mtr, Dist. Line Reel :
1x 4 inches 110 mtr, Cable Reel : 1x 52 mm 8000 mtr
Specifications
| Vessel type: | DO0172 OFFSHORE Supply and Support Vessel For Sale & Charter |
| Builder: | Malaysia |
| Constructed: | 2004 |
| Refitted: | 2006 |
| Class Society: | RINA |
| Class Notation: | Unrestr. |
| Guests: | 50 |
| Berths: | 4 |
| No. of engines: | 2 |
| Engine model: | Caterpillar 3512 |
| Engine power: | 3150 |
| Cruising Speed: | 9 Knots |
| Maximum Speed: | 11 Knots |
| Length over all: | 53.80m |
| Beam: | 13.80m |
| Maximum draft: | 3.80m |
| Hull material: | Steel |
| Water capacity: | 158 Cubic Metres |

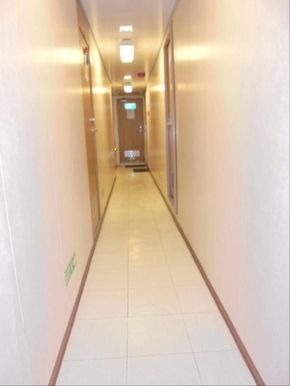

Accommodation

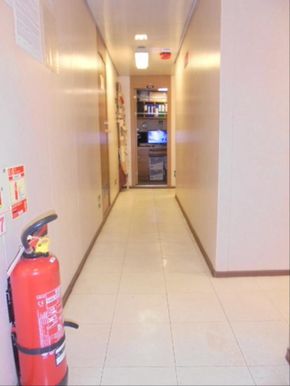

Accommodation (fully air conditioned): Total Accommodation : 50,
Berths : 4 x 1 pers., 3 x 2 pers., 4 x 4 pers., 4 x 6 pers.
Construction
Built (year and place) 2004,MALAYSIA
Hull material steel
Length Overall (m) 53.80 m
Breadth (m) 13.80 m
Draft (m) 3.80 m
NT (tons) 317 tons
GT (tons) 1058 tons
Equipment
Propeller : 2x bronze 4 blades with Kortnozzle
Rudder : 2x independent
Bow Thruster: 1x Caterpillar 3412FFP Tunnel Type 5 Ton
Anchor(s): 1600 kg port anchor, 1600 kg stbd anchor, Port chain-10
lengths, St.chain- 7 lengths.
Crane(s)/Lifting material:

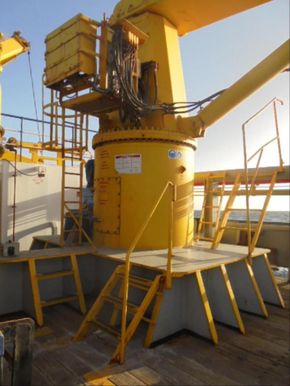

Deck Crane : 1x TTS, GPF 320-10-15, 10.0 Ton SWL @ 15 mtr

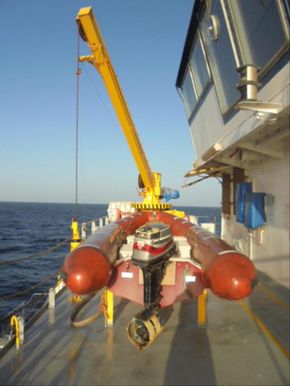

MOB Crane : 1x Sekwang M.M., 1.65 Ton SWL, A-Frame : 1x Davit
PLR-12004 12 tons

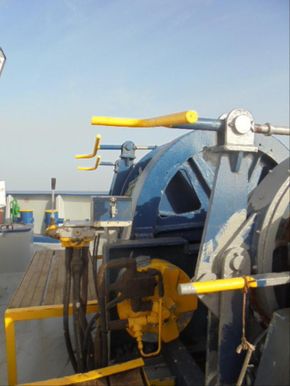

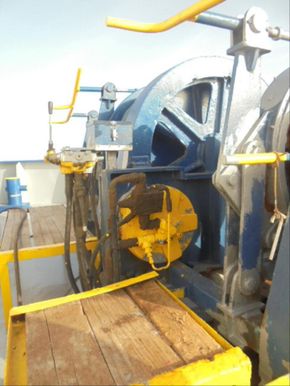

Deck Equipment:

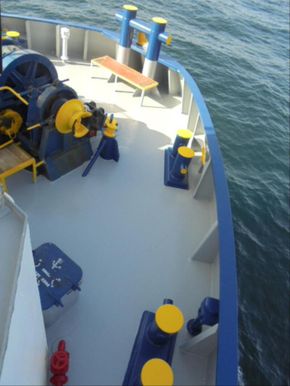

AnchorWindlass : 1x Hydraulic 5 Ton@ 15 m/min Brake holding 30.05
Ton

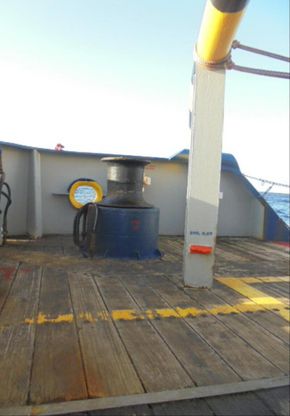

TuggerWinch : 1x Hydraulic 10 Ton, Capstan : 2x Hydraulic 5 Ton

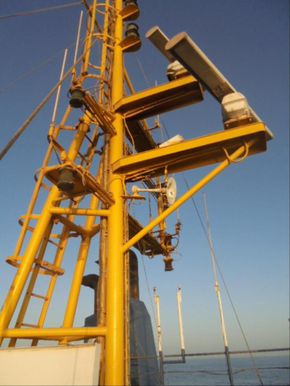

Navigation Equipment
Engine(s)
Total power output (BHP) 3150 bhp
Main Engine(s) (make,type) 2 x Caterpillar 3512, 1575HP
Main Propulsion System twin screw
Propellers 2
Speed maximum 11 knots
Speed cruising 9 knot
Generator(s): Cummins : 2x N4-DM, 260 kW, Cummins : 1x
6CT8.3-D(M)122kW (Harbour

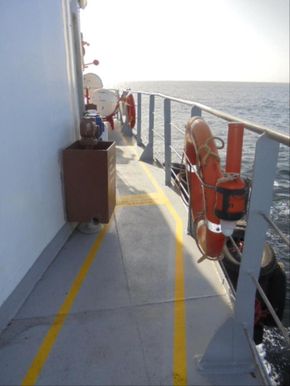

Safety Equipment

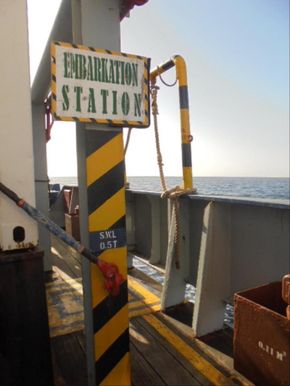

Safety Equipment: MOB : 1x 6 pers. with outboard motor, Life Rafts :
Solas Approved 6 x 25 pers.
Certification
Flag PANAMA
Class Society and Notation RINA
Next SS October 2023
Disclaimer
All details are given in good faith and are believed to be accurate but no warranty of accuracy or completeness or suitability for purpose is either stated or implied. Prices are subject to change without notice.
- DO NOT REPRODUCE, CIRCULATE OR ADVERTISE COMPLETELY OR PARTIALLY ANY OF OUR LISTINGS AND/OR CIRCULATIONS WITHOUT EXPRESSED WRITTEN AUTHORISATION -
